Small Hall Sensor Motor Model – Brushless Ferris Wheel Demonstrator, Bedini Style – Low Power Consumption High Speed Tech Desk Decor

Small Hall Sensor Motor Model – Brushless Ferris Wheel Demonstrator, Bedini Style – Low Power Consumption High Speed Tech Desk Decor

Product Information:

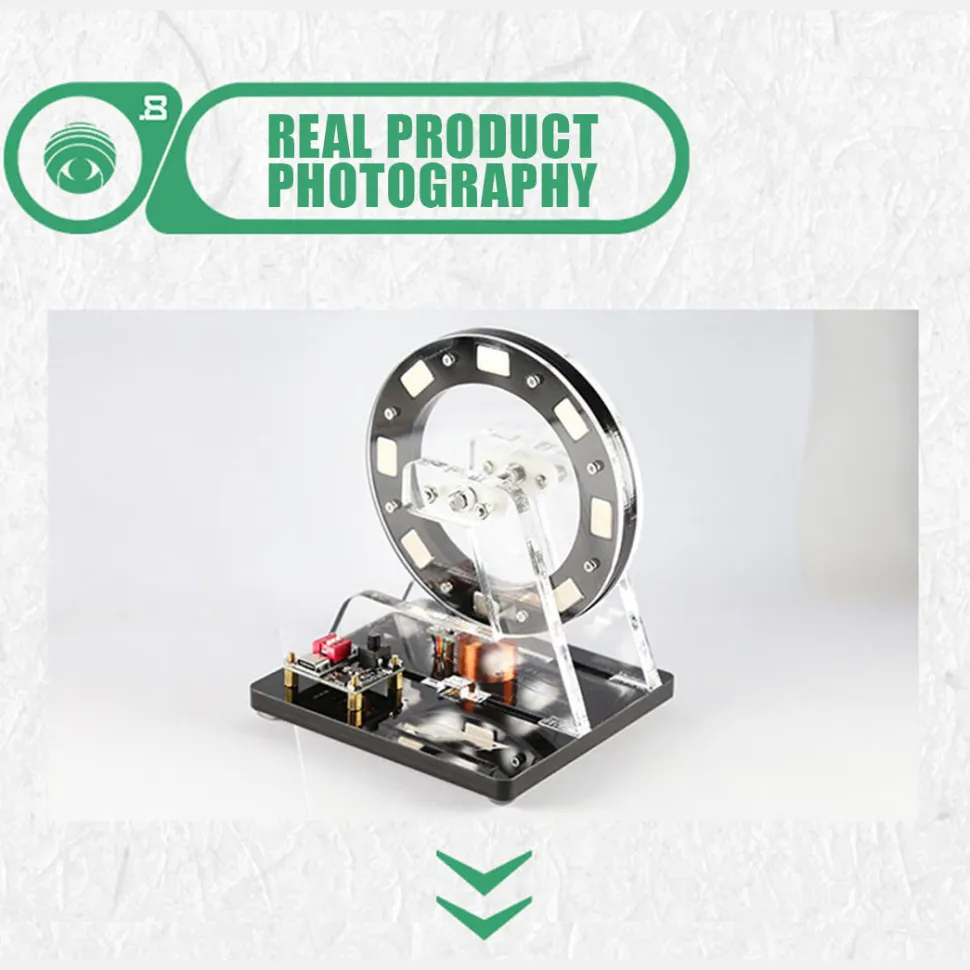

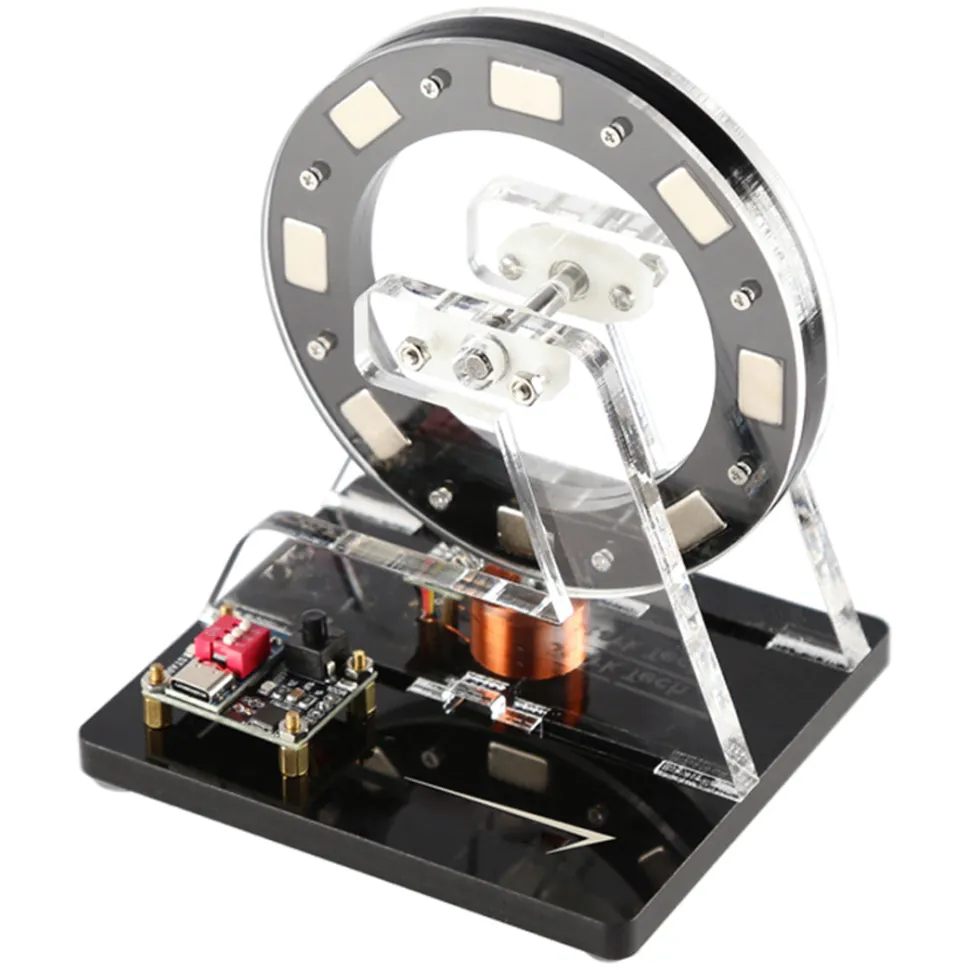

This compact Hall sensor brushless motor model features a ferris-wheel-style rotating structure with visible coils and magnetic components. Powered by a low-consumption 5V Type-C input, it demonstrates brushless motor operation through a clear and accessible mechanical layout. Its integrated controller, open design, and smooth rotation make it a distinctive scientific display and motor principle demonstration model.

.Hall Sensor–Driven Operating Principle on Full Display:

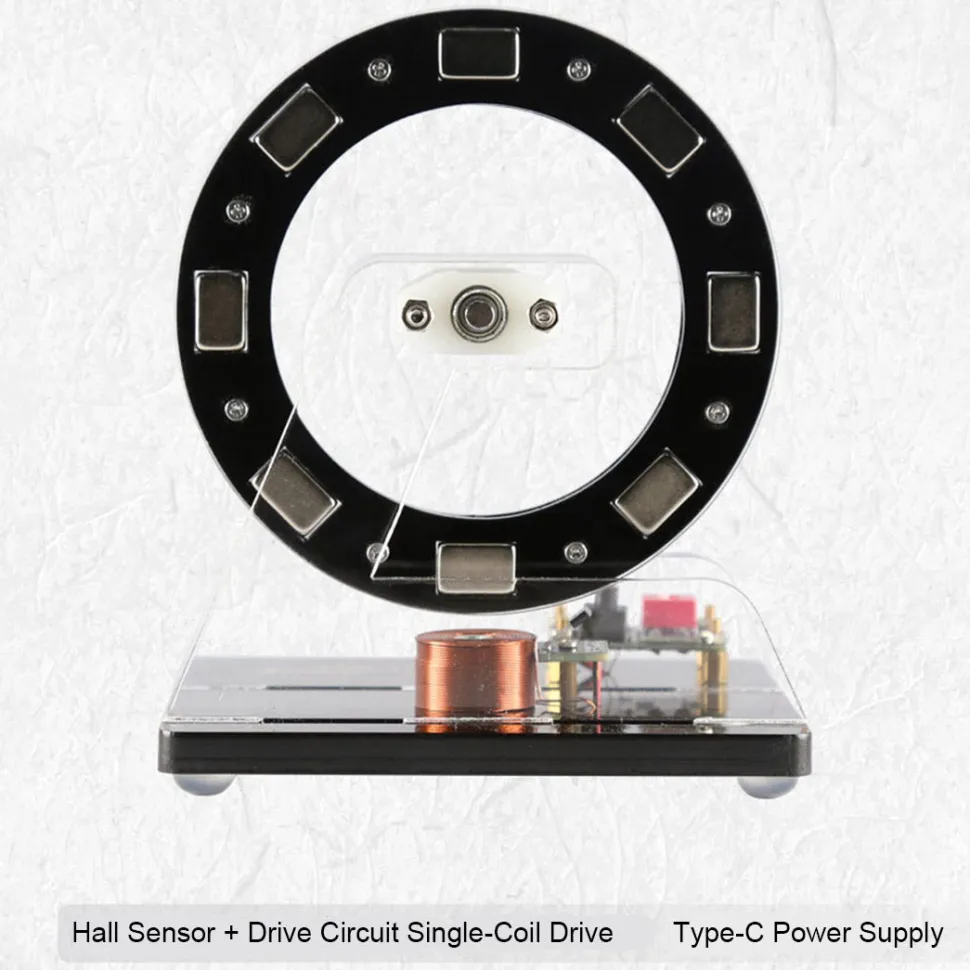

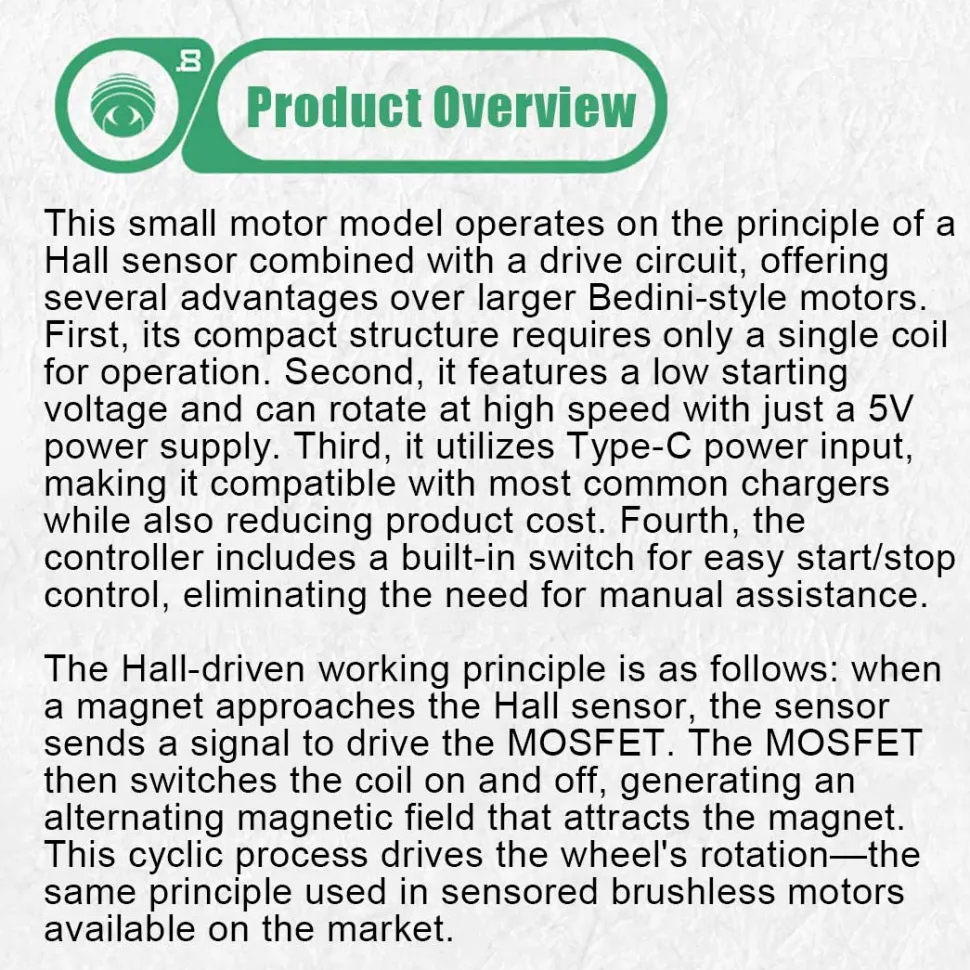

Built around a Hall sensor and drive circuit, the system uses magnetic detection and MOSFET switching to control a single coil. The working process clearly demonstrates brushless motor principles, making electromagnetic interaction and automated control easy to observe.

.Low Power Consumption with Easy Startup:

Powered by a standard 5V/1A Type-C input, the model operates with power consumption of approximately 3–4W. Low startup voltage allows smooth operation using common USB power sources, including phone chargers or power banks.

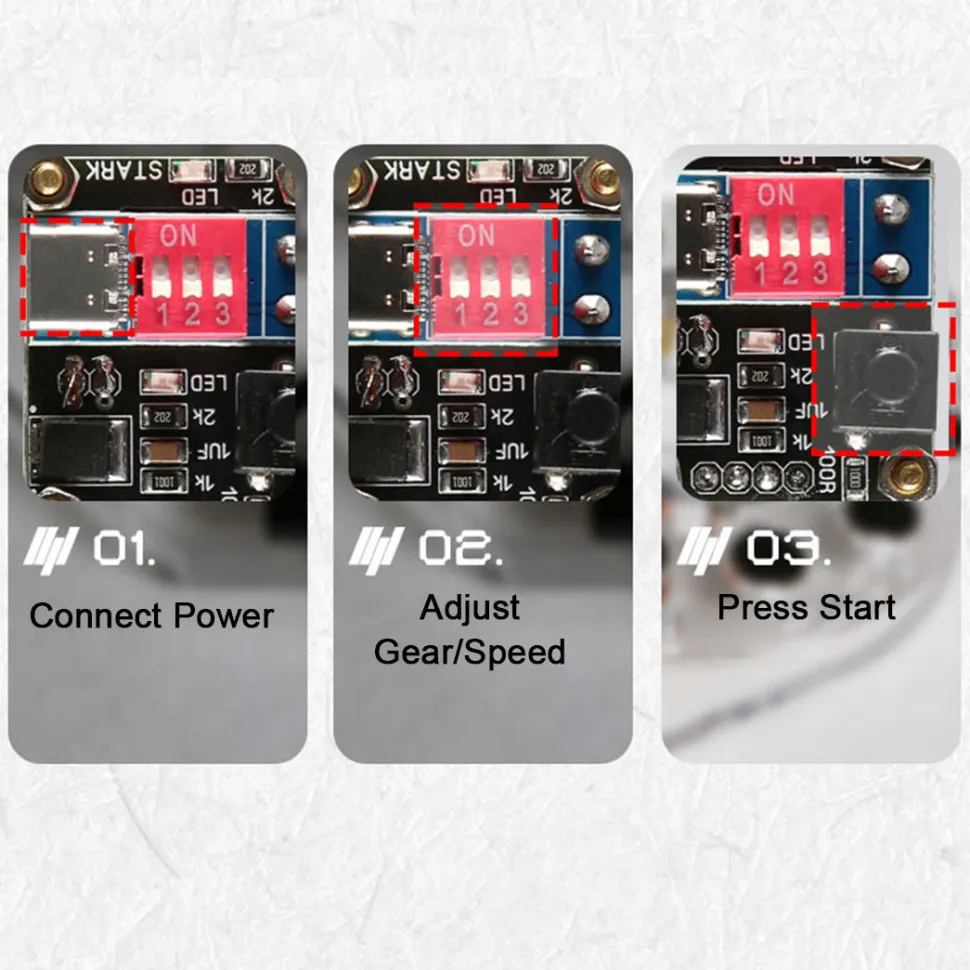

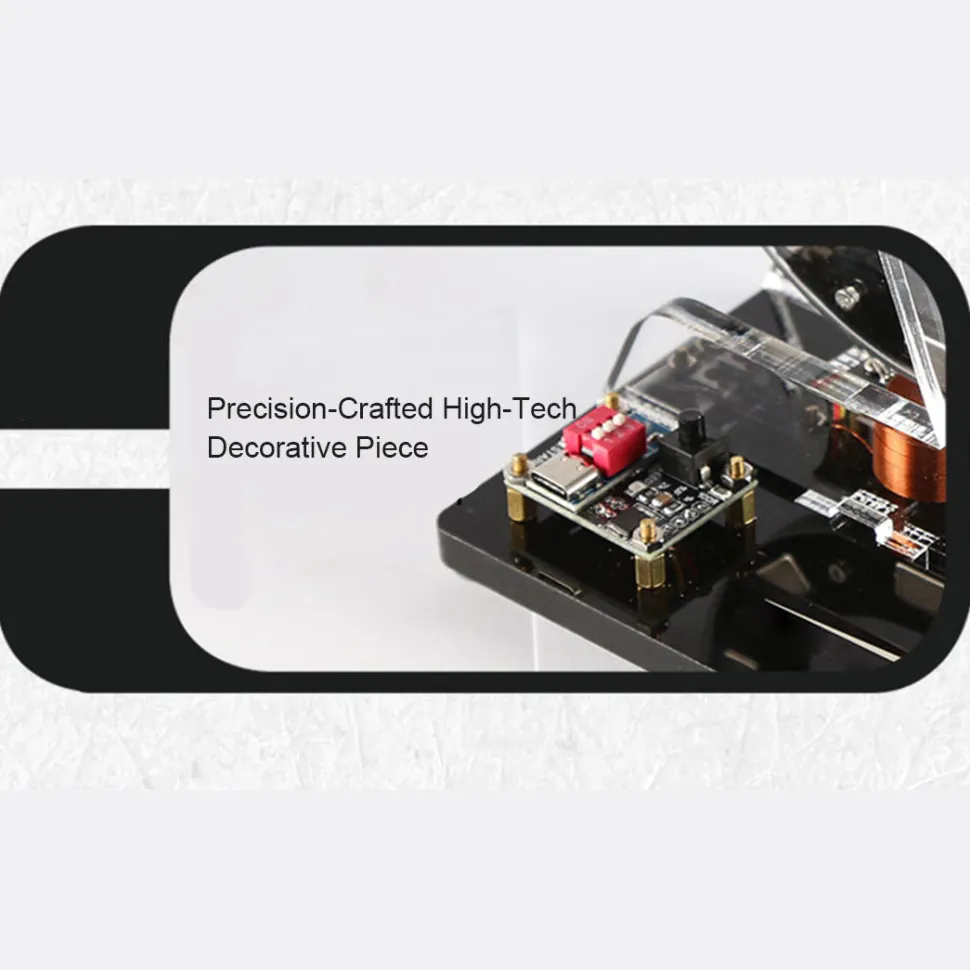

.Compact Integrated Structure with Onboard Switch:

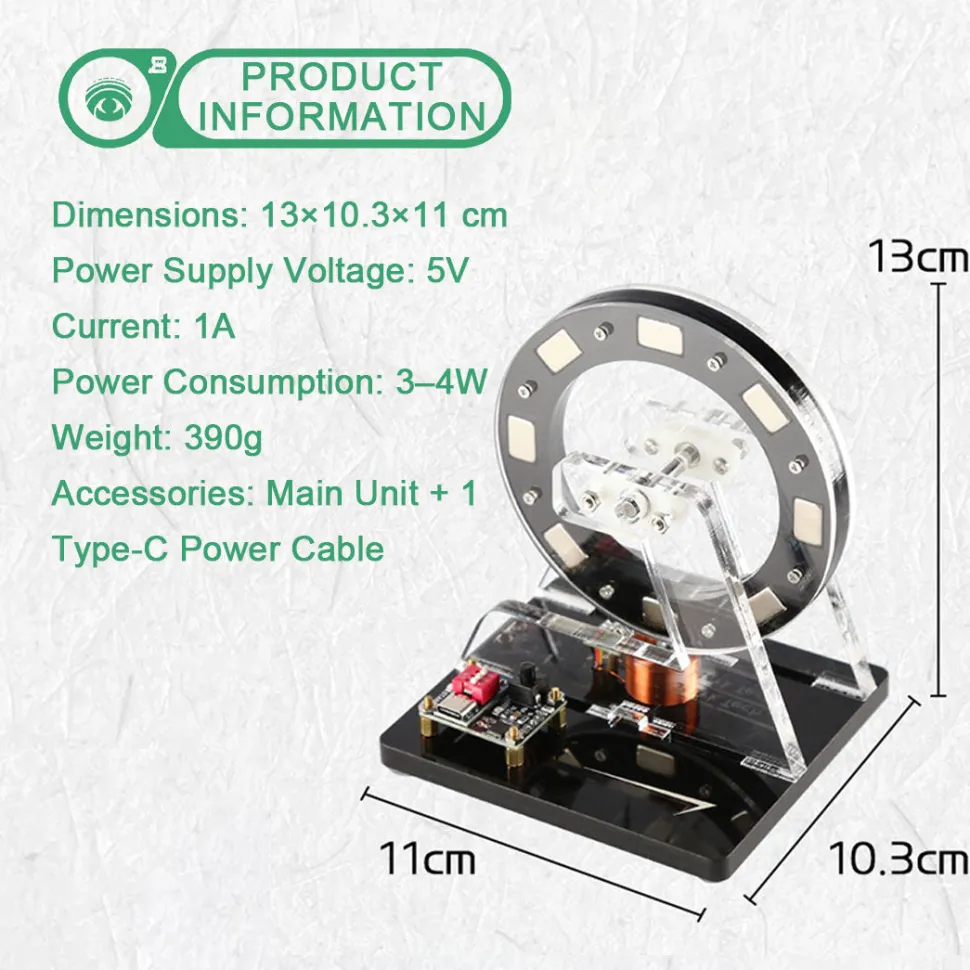

With a compact footprint of about 13 × 10.3 × 11 cm, the motor, coil, magnets, and controller are integrated into a single unit. A built-in physical switch enables one-touch start and stop without manual assistance.

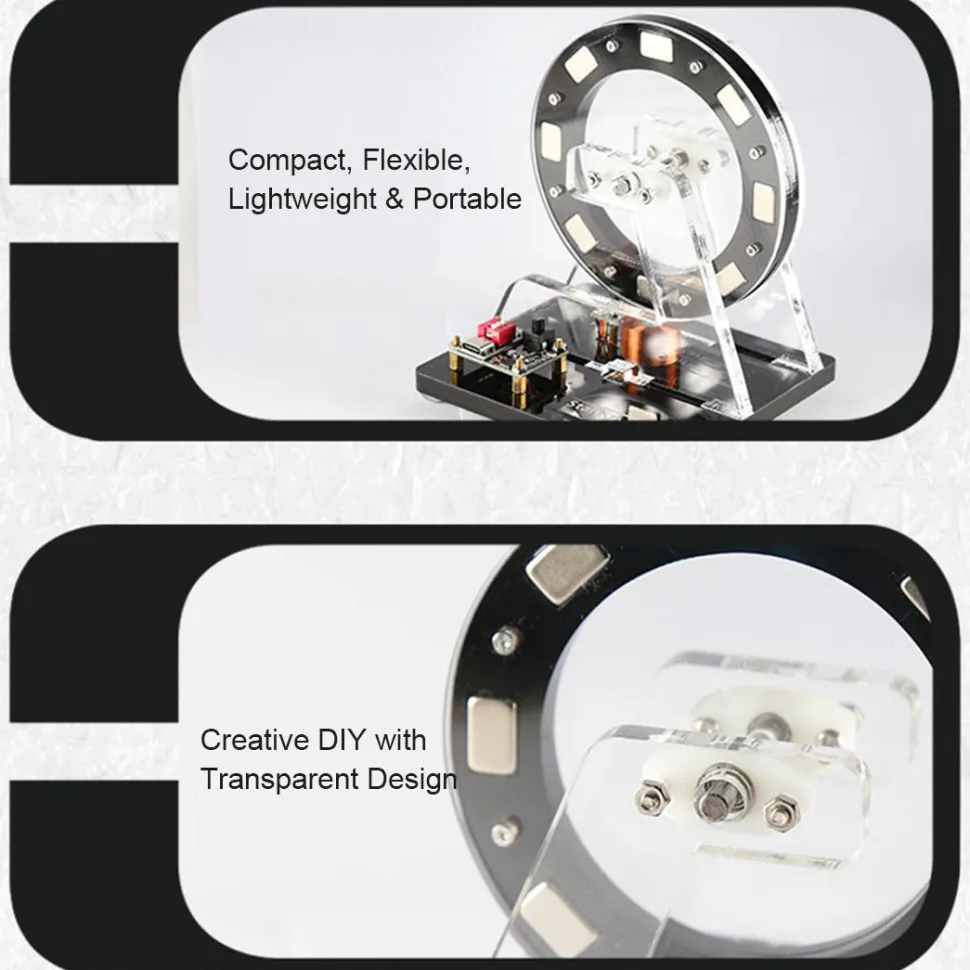

.Open Visual Design for Dynamic Observation:

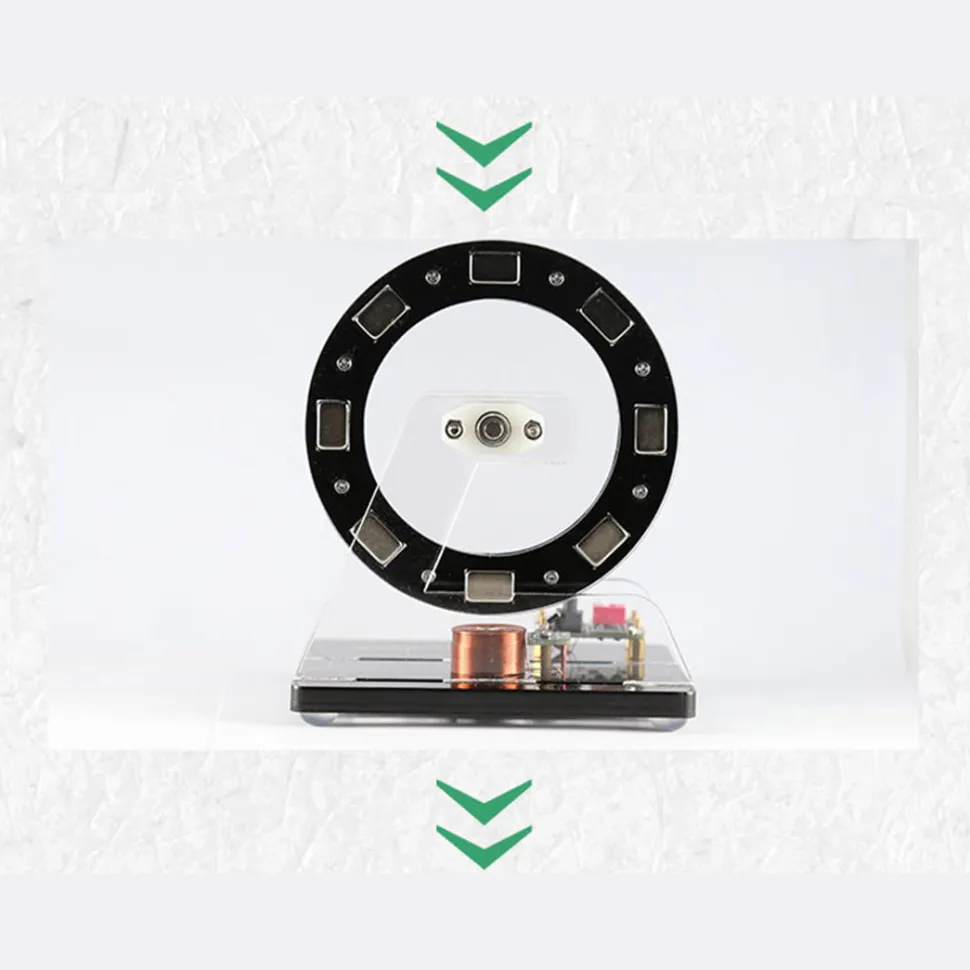

The open or semi-transparent structure allows internal coils, magnets, and transmission components to remain visible during operation. When running, the motion resembles a rotating ferris wheel, combining mechanical clarity with visual appeal.

.Plug-and-Play Setup with Included Accessories:

The set includes the assembled motor unit and a Type-C power cable. No additional components are required—simply connect to a standard 5V power supply to begin operation, making it suitable for desktop display, technical demonstrations, or scientific presentations.

Specifications:

.Material: Acrylic, Neodymium Iron Boron Magnet
.Power Supply: 5V 1A
.Power: 4W
.Speed: 15000r/min
.Product Weight: 390g
.Package Weight: 600g
.Product Dimensions: 11 x 10.3 x 13cm
.Package Dimensions: 23 x 13 x 16cm
.Packing: Box
.Age: 16+

Packing List:

.Main Unit *1
.CC Power Cord *1
.Instruction Manual *1
