Toyan Engine FS-S100AC RC Engine Building Kit with Starter Kit – Build Your Own RC Engine -130Pcs

Toyan Engine FS-S100AC is a diy 4 stroke RC engine build kit . We have put the start kit ( 3-in-1 ESC module, Spark Plug, 30cm oil tube and fuel tank) inside. So after youfinish building of Toyan Engine FS-S100AC, you can start it with these kit.Through playing, you can learn 4 stroke RC Engine’s whole structure and construction. It is interesting and full of experience. Deserve to have one for collection or project.

Features:

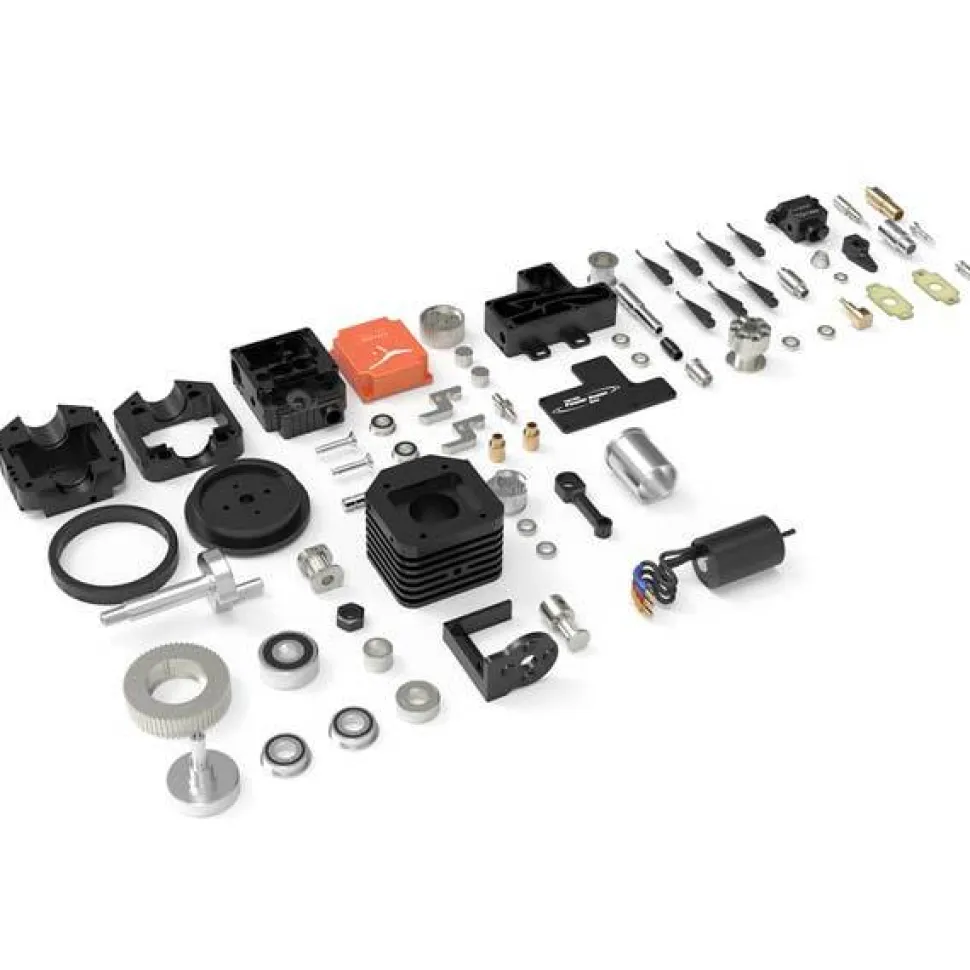

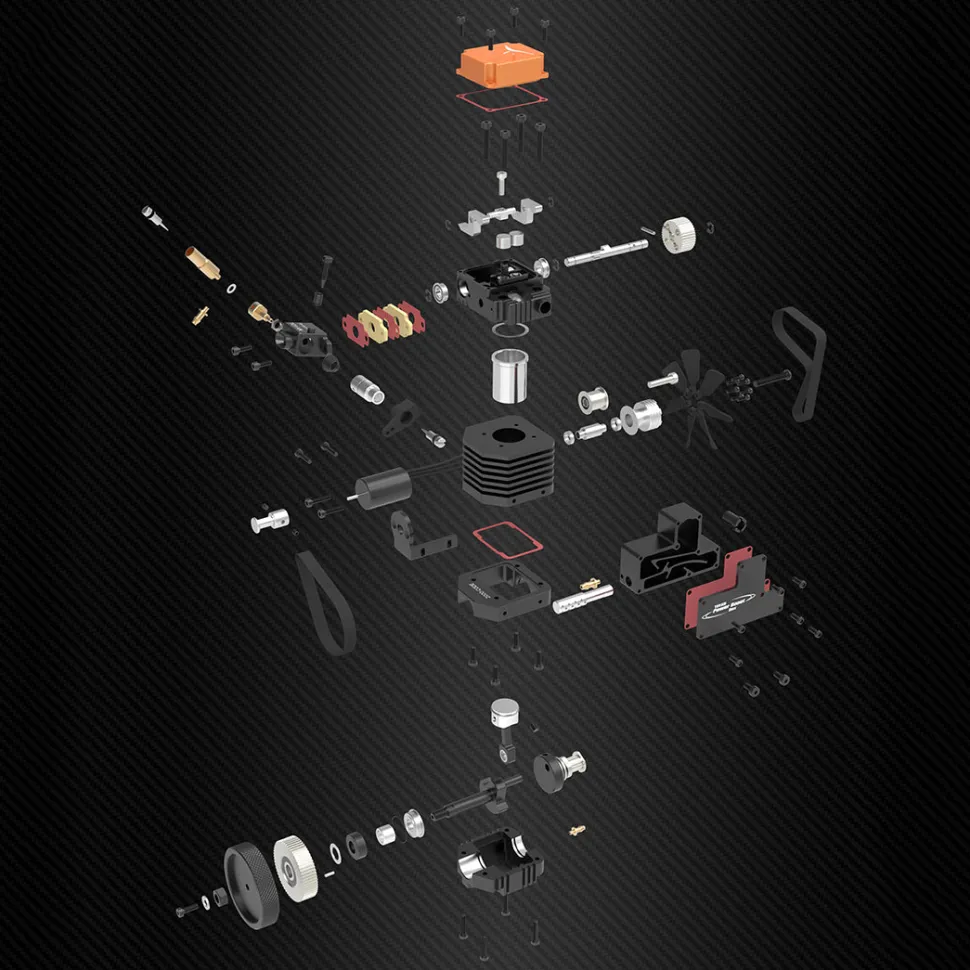

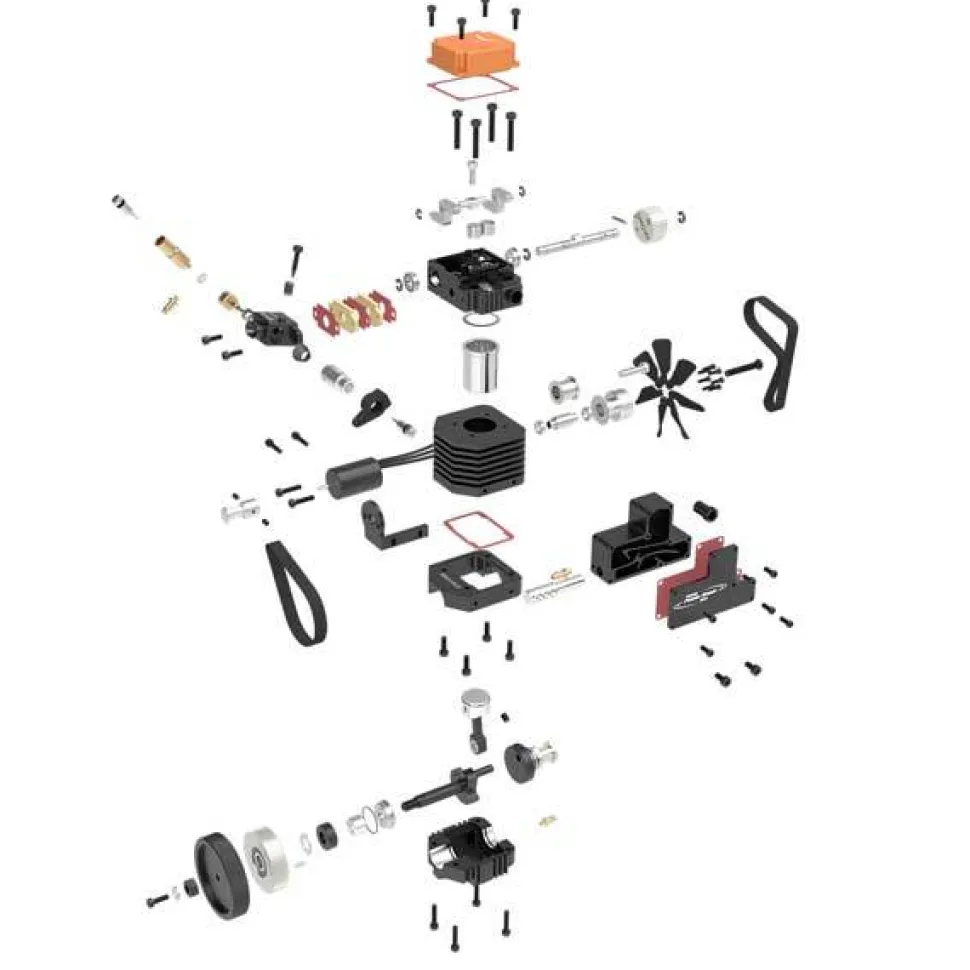

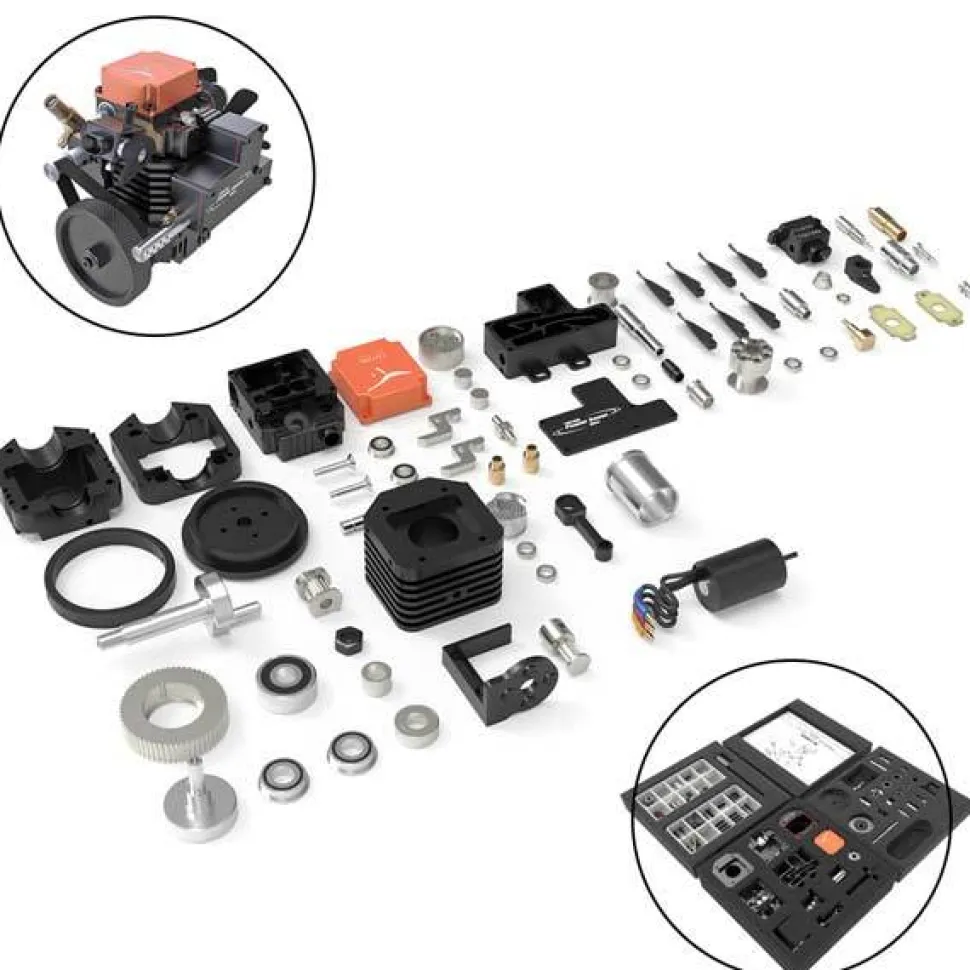

1, Real RC Engine BuildingKit : Toyan FS-S100AC is consisting of 130 pcs, the whole assembly process take around 3.5 hours. While assembly, you will understand the RC Engine working structure. Challenge yourself and prove yourself, build confident in between.
2, Powerful Performance: After assembly, it can work with strong power. While it starts, the rotate speed can up to 13500 RPM / Mins.
3, Fuel: the fuel is consisting of : 20% castor oil, nitro-methane 5-30%, and the rest is methanol. 20-25% methanol content can be used as fuel. No need 100% pure methanol. Or you can buy the Methanol RC model directly from your local store.
4, Extra Accessories Needed for Operation: , it is easy to get from your local store. or you can make purchase from our store directly.
5, Priority Gift Option for Many Applications: The four-stroke engine can used on 1:10, 1:12, 1:14 scale car model or ship model and other equipment. Also, it can be used for classroom display as teaching Aids. Besides, it is ideal Gift for engine lovers.

Specifications:
Item Name: Toyan Engine FS-S100AC
Engine Parts: 130pcs
Material: Metal + Plastic
Engine Dimensions: 100.5 x 85.4 x 86.5mm
Cylinder Bore: 17.0mm
Piston Diameter: 16.6mm
Displacement: 3.5cc
Output Power: 0.5ps Horsepower
Speed: 2500-13500rpm
Product Weight: 800g
Package Dimensions: 18 x 18 x 18cm
Package Weight: 1000g
Packing: Graphic Carton

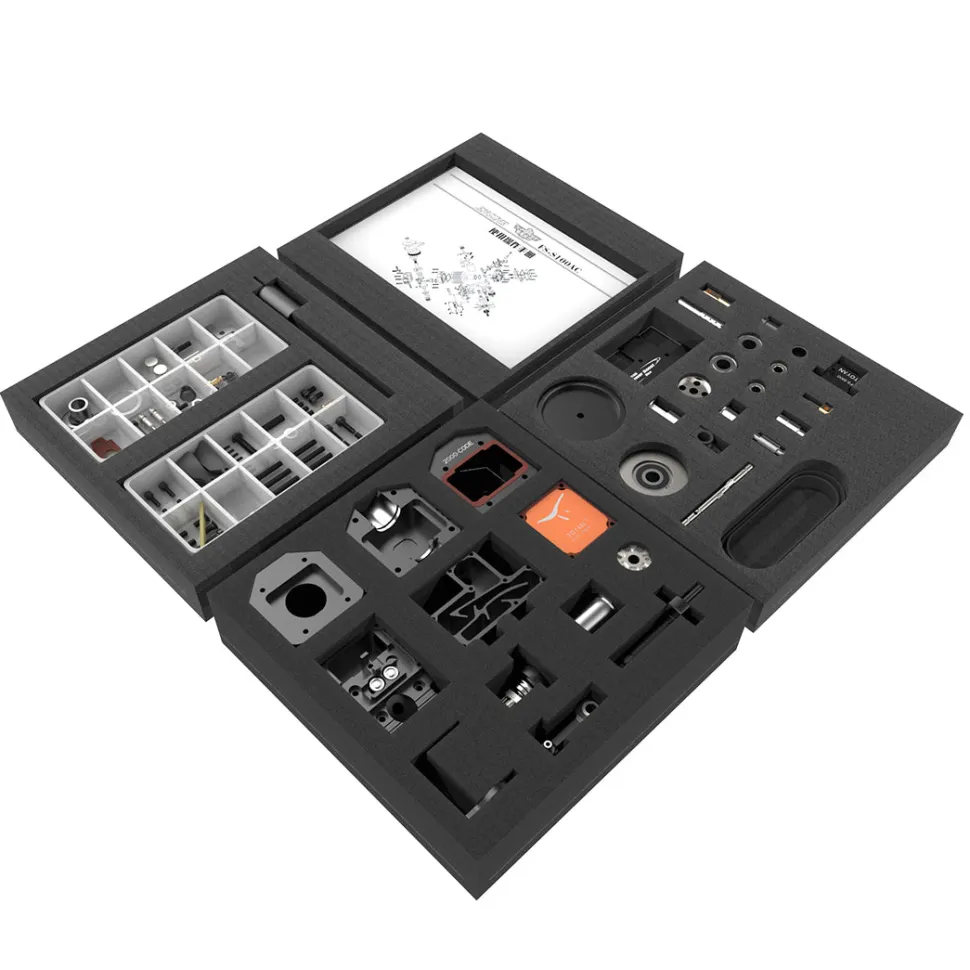

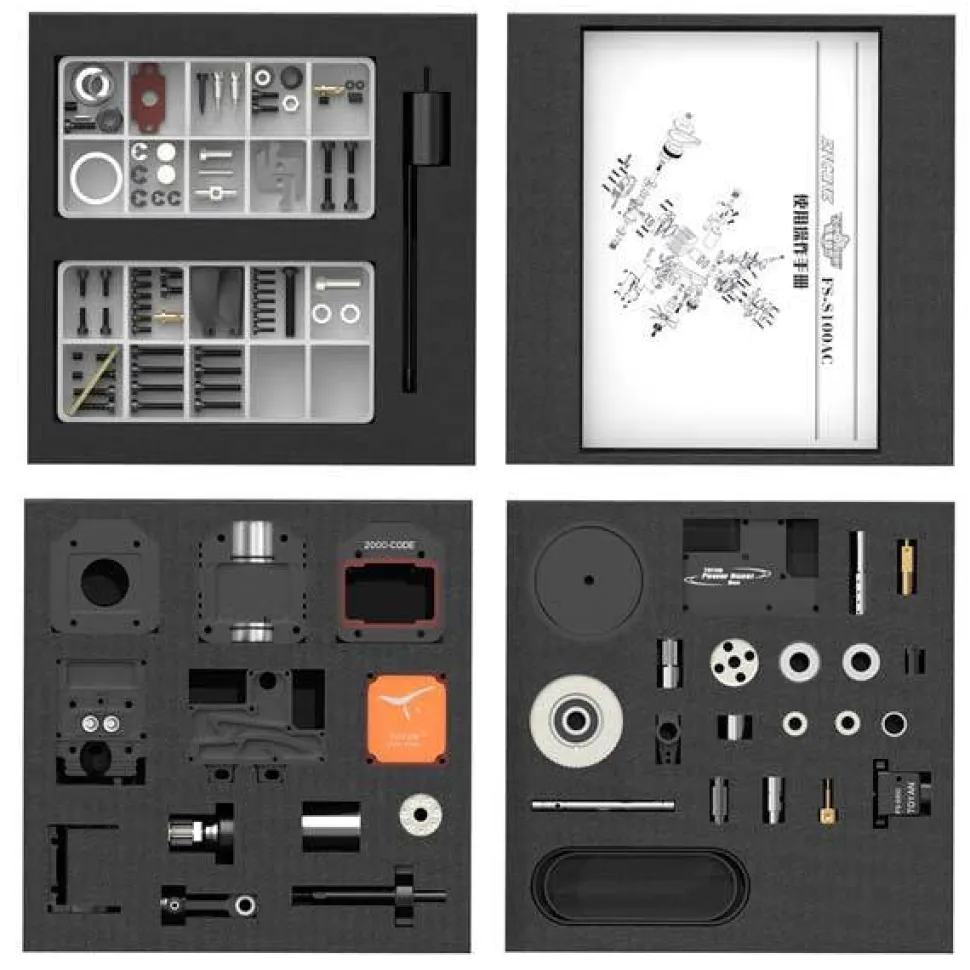

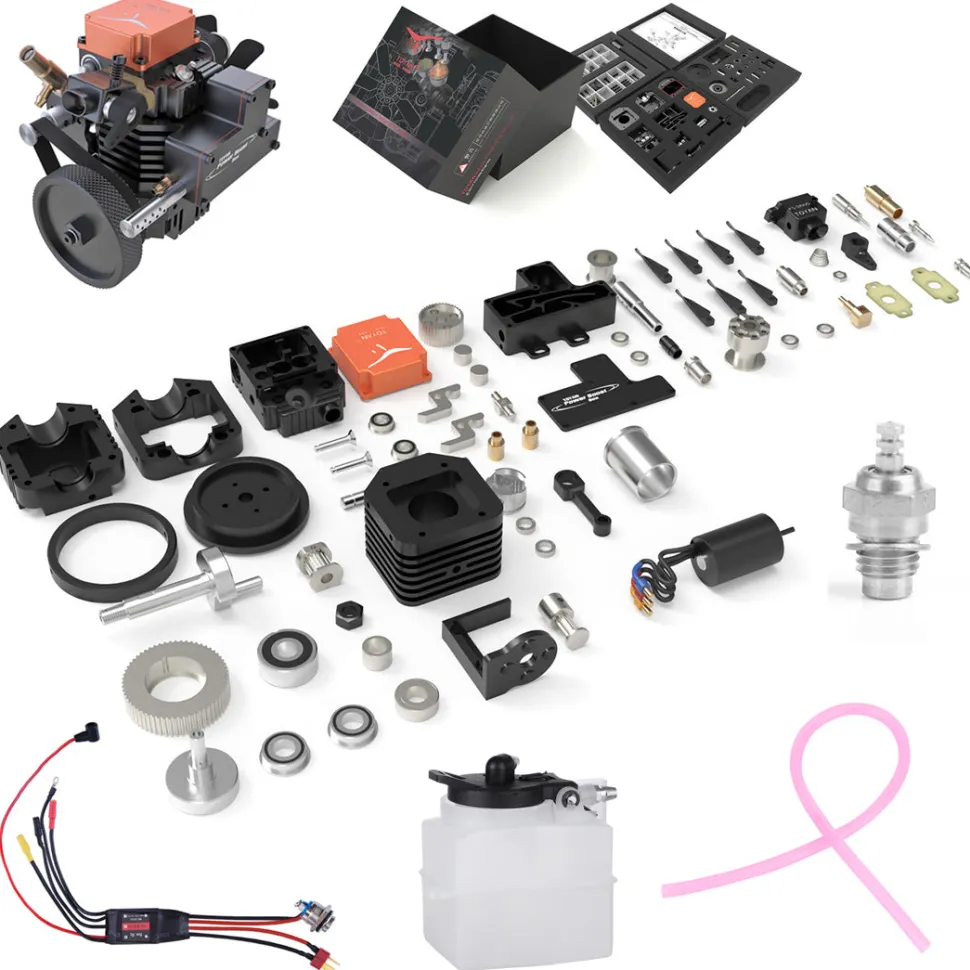

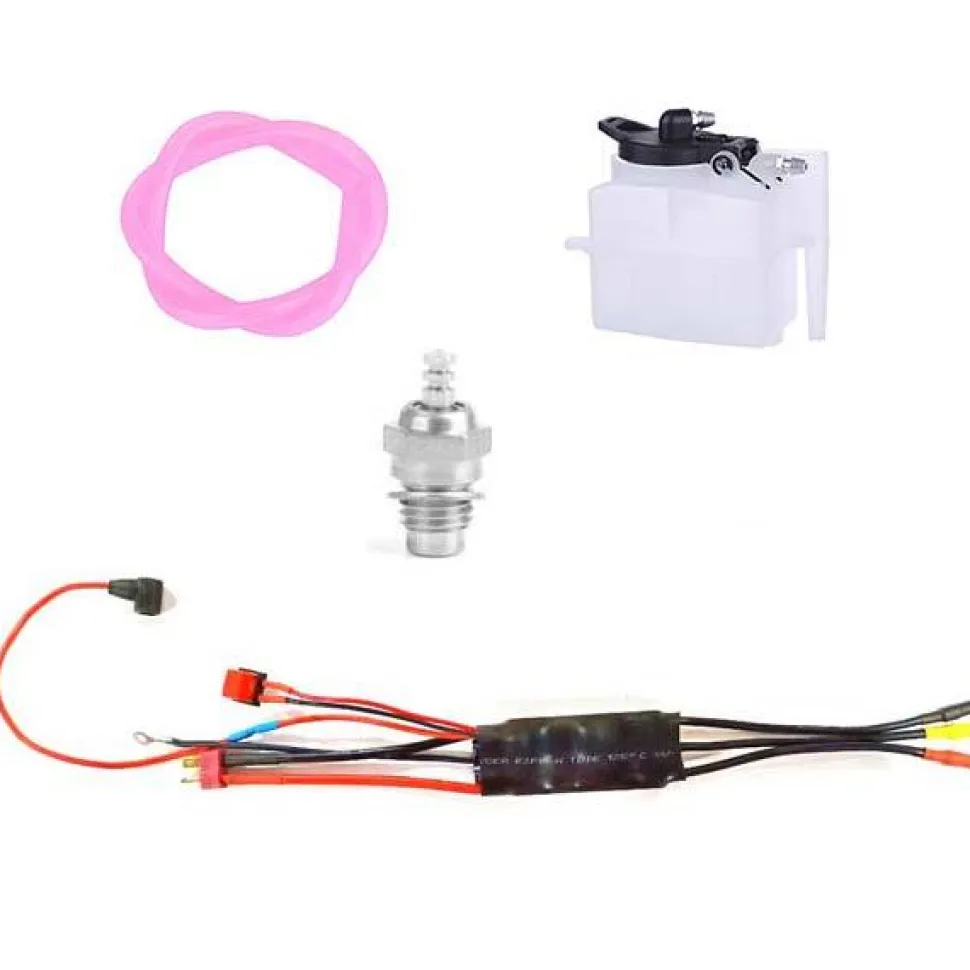

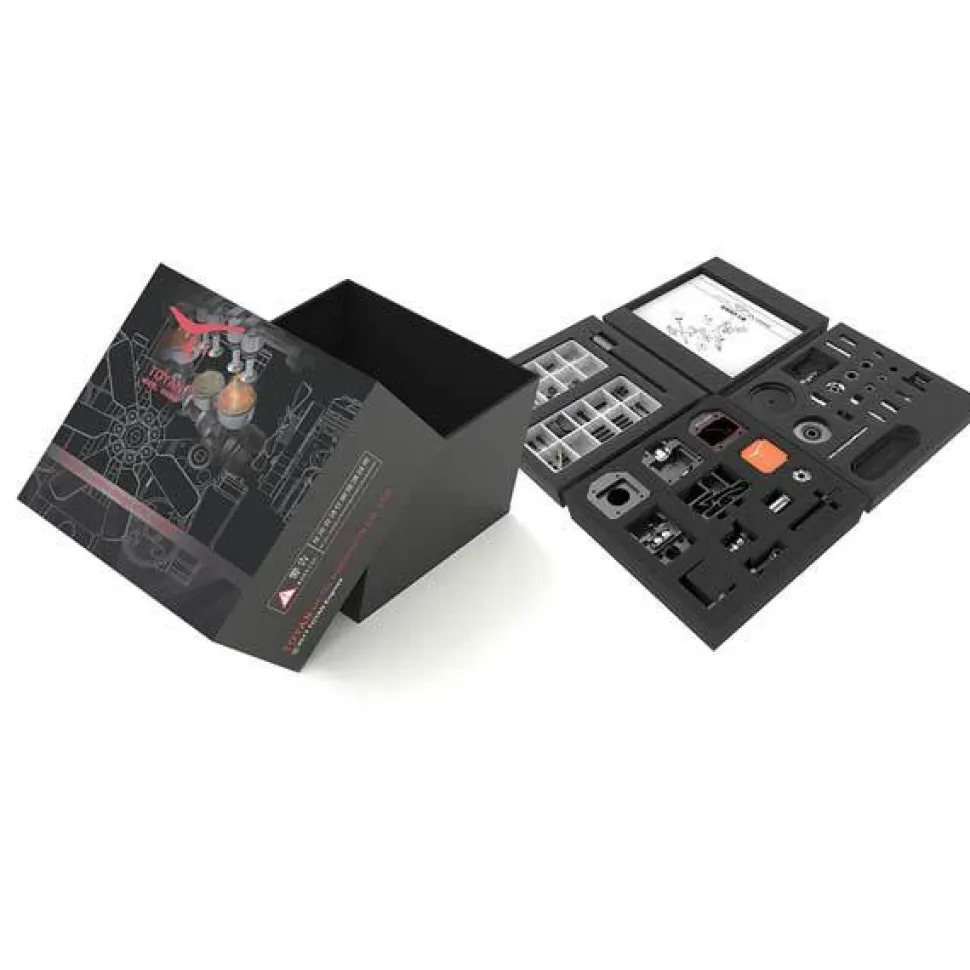

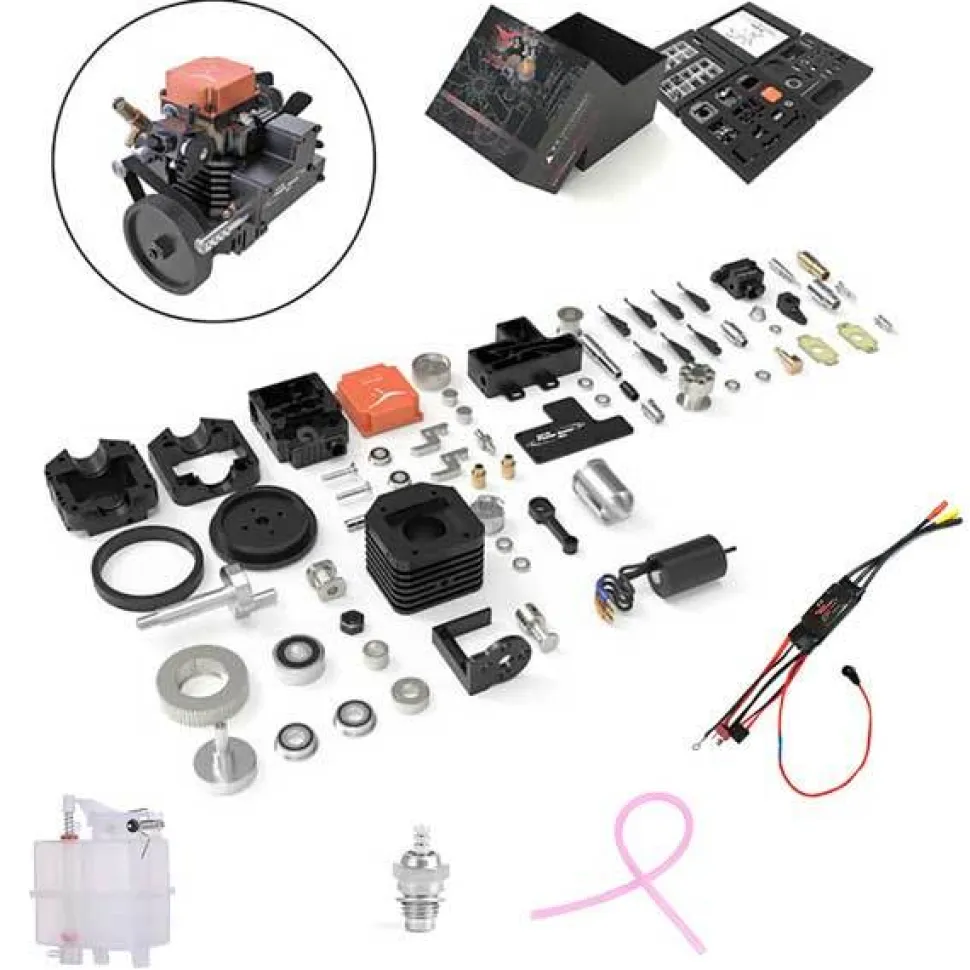

Package Content:
1x Toyan Engine FS-S100AC (130pcs)
1x Paper English User Manual
1x Package Box
1 Set x Assembly tools
1 x 3-in-1 ESC Module
1 x Spark Plug
1 x 30cm Oil Tube
1 x Fuel Tank

Working Principle:
Using methanol as fuel. As the piston moves back and forth in the cylinder, the process of moving from one end of the cylinder to the other is called a stroke. Four-stroke engines are divided into suction stroke, compression stroke, power stroke and exhaust stroke

Tips:
1,Do not touch the motor fan with your hands to avoid scratch
2, Do not touch the cylinder with your hands to avoid burns
